Specifications
| Parameter | Value |
| Model Number |
BJL-XZ4G03-050-SP |
| Dimensions |

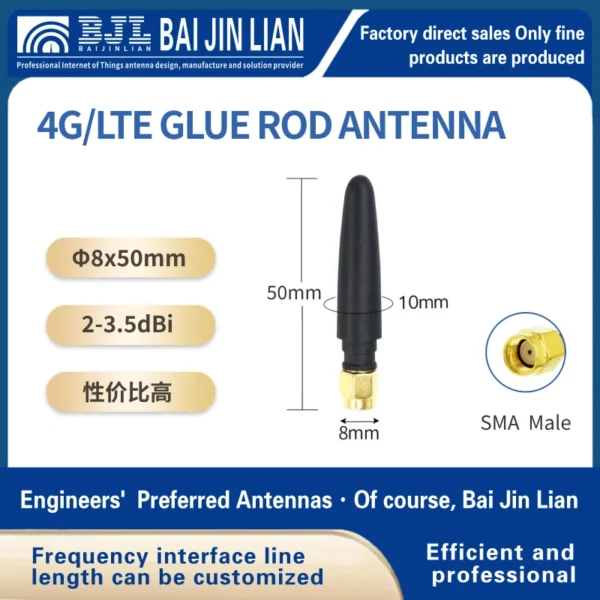

Ф8x50mm |
| Frequency (MHz) |
824-960MHz,1710MHz-2700MHz |
| Bandwidth |
136/990MHz |
| Peak Gain (dBi) |
2-3.5dBi |
| VSWR |
≤ 2.0 |
| Radioactive |
Omni-Direction |
| Polarization Type |
Vertical |
| Input maximum power |
10W |
| Impedance |
50Ω |
| Connector type |
SMA Male/RP SMA Male(Customizable) |
| Product material |
TPEE |
| Operating temperature |
-40°C to +85°C |
